1inch aperture flat Twill Weave Stainless Steel Wire Mesh Screen
Stainless Steel Wire Mesh Screen description:
Stainless Steel Wire Mesh Screen is made of stainless steel round wire.Our machine can as your
eed make the different width and length.Another our woven stainless steel wire mesh have many good
advantages:Anti-rust,anti-corrosion,wear-resisting,heat-resisting,acid-resisting,which can make sure widely
use in diffetent industries.

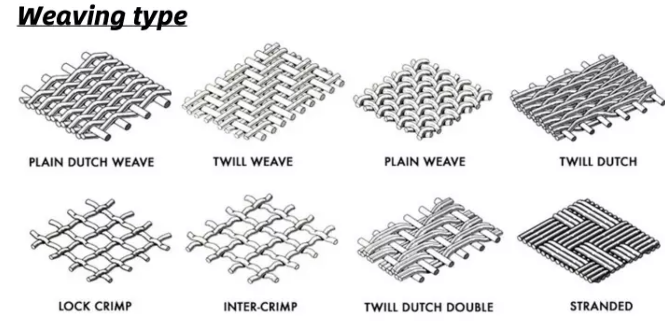

Stainless Steel Wire Mesh Screen Three kinds of weave types:
| (Twill Weave) |
| Mesh | Wire Dia. (MM) | Opening (MM) | Material (AISI) |
| 250meshx250mesh | 0.040 | 0.063 | 316 |
| 300meshx300mesh | 0.040 | 0.044 | 316 |
| 325meshx325mesh | 0.035 | 0.043 | 316L |
| 350meshx350mesh | 0.030 | 0.042 | 316L |
| 400meshx400mesh | 0.030 | 0.033 | 316L |
| 450meshx450mesh | 0.028 | 0.028 | 316L |
| 500meshx500mesh | 0.025 | 0.026 | 316L |
| (Dutch weave) |
| Mesh | Wire Dia. (MM) | Material (AISI) |
| 12mesh x 64mesh | 0.58 x 0.40 | 304 or 316 |
| 24mesh x 110mesh | 0.36 x 0.25 | 304 or 316 |
| 14mesh x 88mesh | 0.50 x 0.33 | 304 or 316 |
| 30mesh x 150mesh | 0.23 x 0.18 | 304 or 316 |
| 40mesh x 200mesh | 0.18 x 0.13 | 304 or 316 |
| 50mesh x 250mesh | 0.14 x 0.11 | 304 or 316 |
| 80mesh x 700mesh | 0.10 x 0.08 | 304 |
Stainless Steel Wire Mesh Screen many benefits including:
1. Widest range filtration, from over 6-inch aperture down to 1-micron nominal.
2. High open area/flow rate.
3. Closely controlled, accurate apertures.
4. Smooth surface, screening surface has no sharp edges, burrs or acute angles.
5. Very high-temperature tolerance (variable according to metal selected).
6. Usable under high pressure.
7. Flexible - ideal for forming rigid concave / convex shapes.
8. Control of chemical/acid/ corrosion resistance using different metals.
9. Special aperture requirements can be met without high tooling costs.
10. Suitable as upper for less rigid media.
Stainless Steel Wire Mesh Screen widely usage:
1. oils,chemicals,food,
2. pharmaceuticals
3. Sorting and screening of solid,
4. liquid and gas in mine,
5. metallurgy,airspace,
6. machine making etc
7. dairy Life filter
8. sieve use.
Stainless Steel Wire Mesh Screen also called:
stainless steel woven wire mesh
stainless steel wire mesh
stainless steel wire netting
stainless steel mesh
stainless steel woven mesh

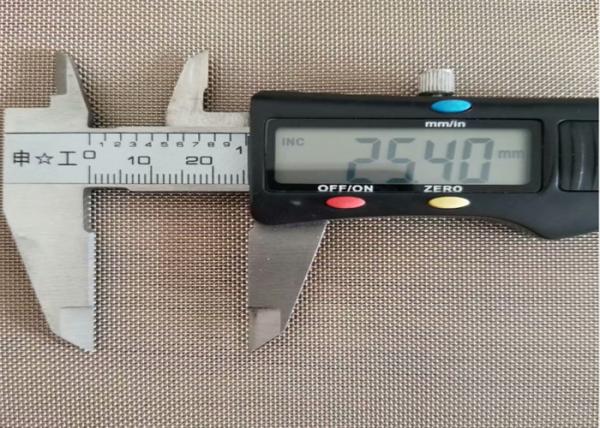

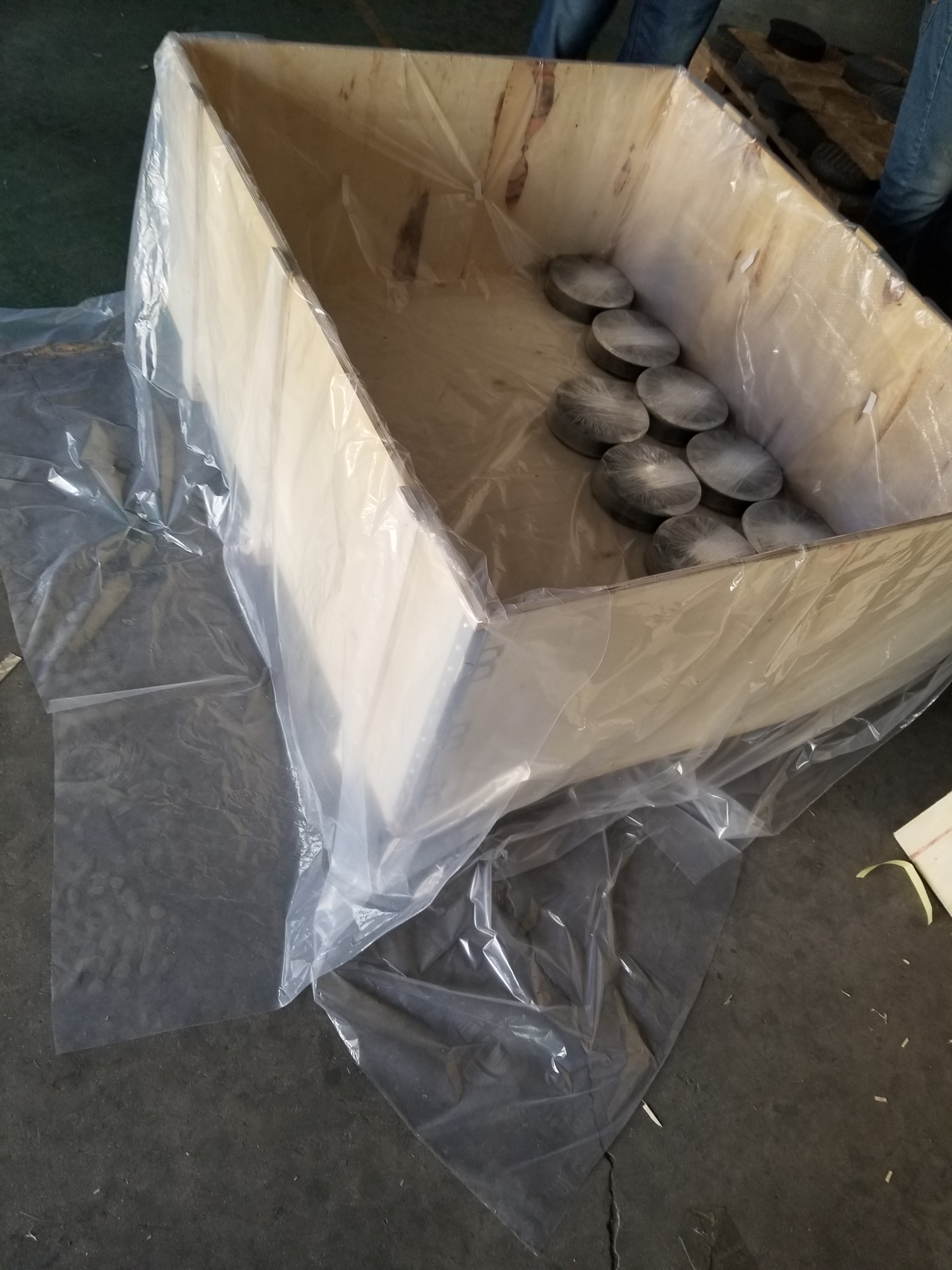

Show our Stainless Steel Wire Mesh Screen product pictures for reference as follows:
