Stainless Steel Rope Mesh Netting Strong Toughness Anti - Corrosive For Animal Zoo

Brand Name : Honesty&Faith

Model Number : 25.4 38 51 76

Certification : ISO9001

Place of Origin : CHINA

MOQ : 100-300units

Price : USD2.06~USD3.22

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2800M2/week

Delivery Time : 7-10days

Packaging Details : In Carton,Wooden Box

Width : 1m 1.2m 1.5m 2m As your required

Length : 10m 20m 30m As your required

Material : SS302 304 316 316L

Hole shape : Diamond

Packing way : In Carton,wooden box

Surface : smooth,bright,clean

Contact Now

Anti-corrosive wire rope mesh stainless steel wire rope net ss304 strong toughness for animal zoo

Wire rope net:

Wire rope net(also called cable mesh) made form high quality stainless steel wire rope.It is special use

hand to make.So the soft surface,uniform hole size,long lifespan in the harsh environments,largest benefit

is particular resilience and flexibility.Our rope mesh may in knotted,ferrule type, woven square,or square

mesh with cruciate/cross clamps.they are all favored by fashion architects.

Wire rope net kinds:

1.Knotted Mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

2.Ferruled Mesh is of the same physical properties with the knotted Mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Wire rope net specification list:

Cable diameter Mesh opening size Nominal break
inch mm inch mm lbs.
1/8 3.2 4x4 102x102 1600
1/8 3.2 3x3 76x76 1600
1/8 3.2 2x2 51x51 1600
3/32 2.4 4x4 102x102 920
3/32 2.4 3x3 76x76 920
3/32 2.4 2x2 51x51 920
5/64 2.0 3x3 76x76 676
5/64 2.0 2x2 51x51 676
5/64 2.0 1-1/2x 1-1/2 38x38 676
1/16 1.6 3x3 76x76 480
1/16 1.6 2x2 51x51 480
1/16 1.6 1-1/2x 1-1/2 38x38 480
1/16 1.6 1x1 25.4x25.4 480
3/64 1.2 1-1/2x 1-1/2 38x38 270
3/64 1.2 1x1 25.4x25.4 270
3/64 1.2 4/5x4/5 20x20 270
Wire rope net feature:
1. This product can bear the heavy snow and the gale very much.
2. Without toxic material,afety,environmental protection.
3. The mesh is clipped to the cable.

4. The hole size and diameter can be modified.
5. It can be made to customer orders and statically tested-especially suitable for facades.
6. High strength, strong toughness,free-angles curving and fold, easy for transportation and installment.
7. Anti-corrosive, resist the rust, can be repeated use.
8. Resists chewing by rodents and other pests (tensile strength approximately 100-110,000 PSI)

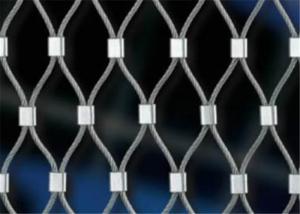

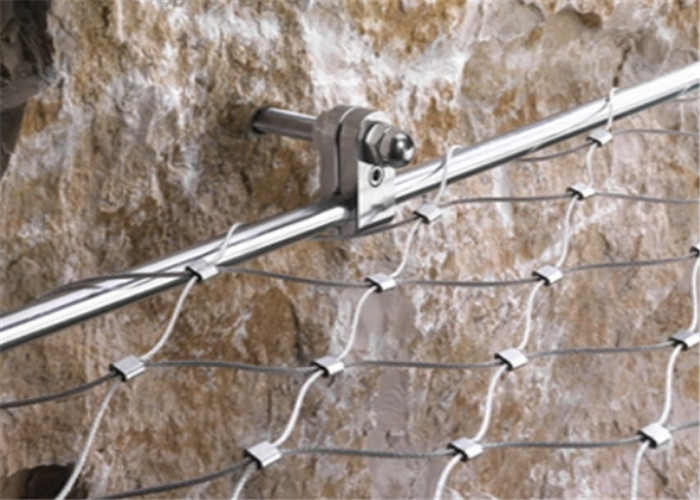

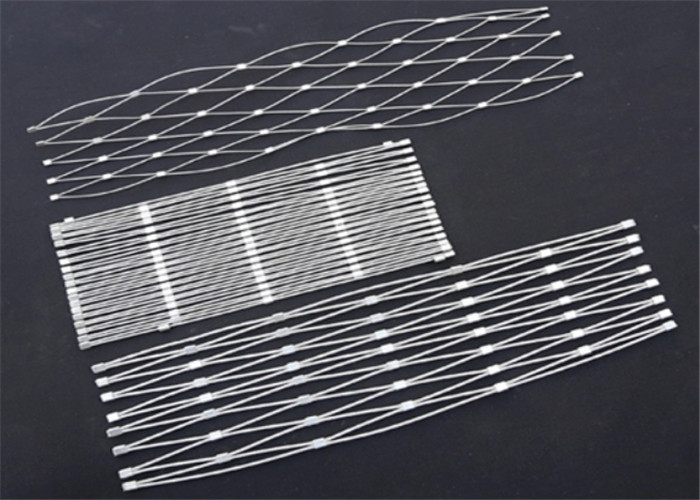

Show our wire rope net product pictures for reference:

Stainless Steel Rope Mesh Netting Strong Toughness Anti - Corrosive For Animal Zoo

Stainless Steel Rope Mesh Netting Strong Toughness Anti - Corrosive For Animal Zoo
