5mm Small Hole Flat Expanded Metal Mesh:
Expanded metal mesh is an intermediate raw material that allows light and air to flow freely through it
and that has more rigidity than the sheet from which it was produced.
It is formed in an expanded metal press and produced from any malleable metal sheet product.
The plate, sheet, or coil is simultaneously slit and stretched into diamond-shaped openings.
These openings are of uniform size and regularity.
5mm Small Hole Flat Expanded Metal Mesh Styles:
- Regular (standard or raised) – all expanded metal is produced in regular form off the expanders.
The strands and bonds are set at a uniform angle to the plane of the sheet. This gives added strength
and rigidity, as well as a skid resistant surface.
- Flattened – is manufactured by processing regular expanded metal in a rolling mill. The rolling process
reduces the thickness of the original base metal.
5mm Small Hole Flat Expanded Metal Mesh Design Designations:
Strands – The sides of the expanded metal design
Strand Thickness – Thickness of the base material from which the sheet was produced.
Strand Width – Amount of metal fed under dies to produce one strand
Strand Thickness and Width – Can be varied to create different openings.
The width of the strand should equal or exceed the thickness of the base metal.
SWD – Nominal dimension, Short Way of Diamond
LWD – Nominal dimension, Long Way of Diamond
Design Size – Actual dimension SWD and LWD.
Measured from a point to a corresponding point on the adjacent diamond.
SWO – Short Way of Opening
LWO – Long Way of Opening
Bond – Where two strands intersect
5mm Small Hole Flat Expanded Metal Mesh application industries:
- Air and fluid filters
- EMI/RFI shielding
- Battery cells
- Ventilation systems
- Strainers
- Satellite and radar antennas
- Partitions
- Outdoor furniture
- Speaker grills
- Security walls, ceilings, floors, doors
- Machine and window guards
- Fencing
Our good service for you:
- Sending us an inquiry, you will get all information you would like to know and additional suggestions from
our rich export experience. Hope we can be your reliable supplier. - Enquiry Response Within 24 Hours
- Product Sourcing & Package Advising
- Production Keep you informed on the process of the productio
- Pictures of the production and package set for your reference
- After shipment Welcome Feedback to us about the quality,service, market and suggestion.
5mm Small Hole Flat Expanded Metal Mesh details :
| Small Hole Expanded Metal Mesh | | Materials | Carbon Steel Aluminum Stainless Steel Galvanized Copper Brass Titanium Platinum Zinc Nickel Silver Gold | | Surface Treatments | hot-dip galvanizing pre-galvanizing anodizing, enameling power coating painting plastic coating, etc. | | Hole Patterns | Diamond square round triangle scale | | Benefits | The “Flow” of Light and Air Design Customization Design Flexibility Strength and Formability Durability Cost Effective Cost Effective | |
5mm Small Hole Flat Expanded Metal Mesh also called:
Expanded steel grating,
Expanded metal mesh,
Expanded wire mesh,
Expanded metal sheet,
Expanded steel sheet.

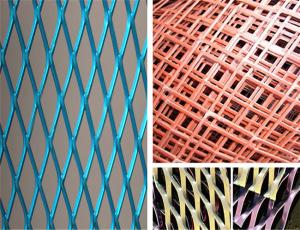

Show our 5mm Small Hole Flat Expanded Metal Mesh product pictures to you:
