28m SS316L Ceiling Architectural Decorative Cable Mesh
Architectural Decorative Cable Mesh Specification list:
| Design | Open area | Cable wire dia. | Cable pitch | Bar dia. | Bar pitch | Thickness | Weight |
| 1 | 40% | 1x1.8 mm | 4 mm | 1.5 mm | 5.5 mm | 5.1 mm | 7.74kg/m2 |
| 2 | 43% | 1x2.5 mm | 6 mm | 2 mm | 8 mm | 5.5 mm | 7.87kg/m2 |
| 3 | 62% | 2x2.75 mm | 40 mm | 4 mm | 14.5 mm | 9.5 mm | 9.41kg/m2 |
| 4 | 37.20% | 3x0.5 mm | 3.5 mm | 0.5 mm | 1.4 mm | 1.3 mm | 2.4kg/m2 |
| 5 | 71% | 3x1.6 mm | 80 mm | 2.5 mm | 10 mm | 5.7 mm | 4.58kg/m2 |
| 6 | 65% | 3x2 mm | 80 mm | 3 mm | 10 mm | 7 mm | 6.67kg/m2 |
| 7 | 65.90% | 3x2.75 mm | 110 mm | 4 mm | 14.5 mm | 10 mm | 8.5kg/m2 |
| 8 | 67% | 3x3 mm | 110 mm | 4 mm | 14.2 mm | 10 mm | 8.6kg/m2 |
| 9 | 44.30% | 4x0.75 mm | 26.4 mm | 1.5 mm | 3 mm | 3 mm | 5.2kg/m2 |
| 10 | 62% | 4x1 mm | 36 mm | 2 mm | 6.6 mm | 4 mm | 4.55kg/m2 |
| 11 | 40% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7mm | 11.2kg/m2 |
| 12 | 42% | 4x2 mm | 50 mm | 3 mm | 6 mm | 7 mm | 11.8kg/m2 |
Architectural Decorative Cable Mesh Material:
1. Normal we design the stainless steel 304,316,316L
2. Also have Aluminium wire,brass wire
3. Special custom as your need material.

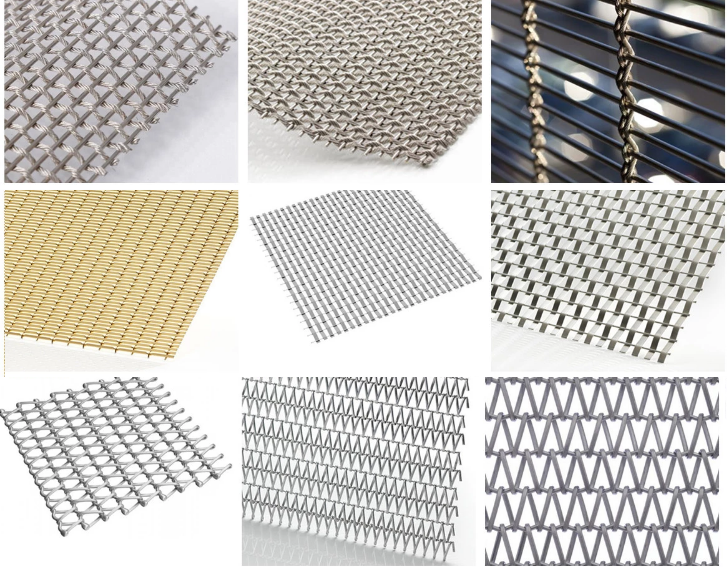

Architectural Decorative Cable Mesh different types:
Architectural Decorative Cable Mesh features:
1. Fireproof: This kind of mesh cloth is not like the cloth, it is nonflammable.High-strength.
2. Easy to cleaning: You just use a piece of rag to wipe it when metal cloth aredirty. Strong functional.
3. The installation is easy and fast and it has chic elegant appearance.
4. The products are durable, luxuriant and high-grade, it reflects the unlimited creativity and artistic aesthetic.
5. Popular and excited by the architects and designers all over the world.
6. Variety of openings and sizes;
7. Unique design and appearance; Architecturally inspired, aesthetic enjoyment.
Architectural Decorative Cable Mesh Packing Way and load container:

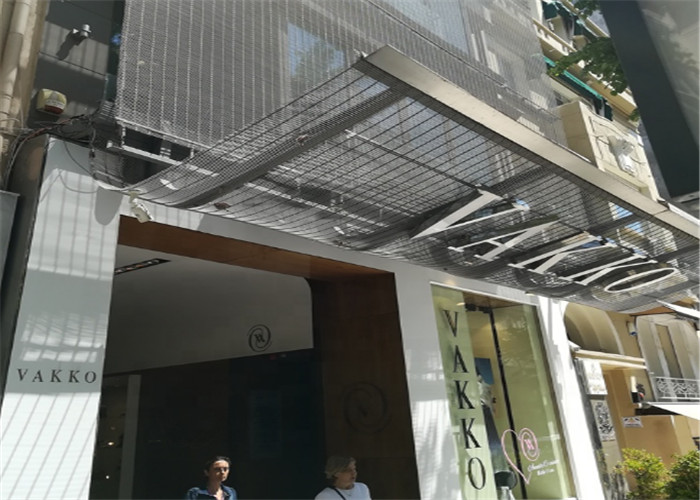

Architectural Decorative Cable Mesh uses:
1. Security Screens,Shade screens,Partitions
2. Fill panels,Elevator compartments and hoistways
3. Exterior facades,Protective grilles,screens and barriers
4. Wire Mesh room dividers,Decorative wall wire mesh and ceiling wire mesh
Our Good and professional service for you:
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the screen, training how to maximize the use time.
* Engineers available to service machinery overseas.

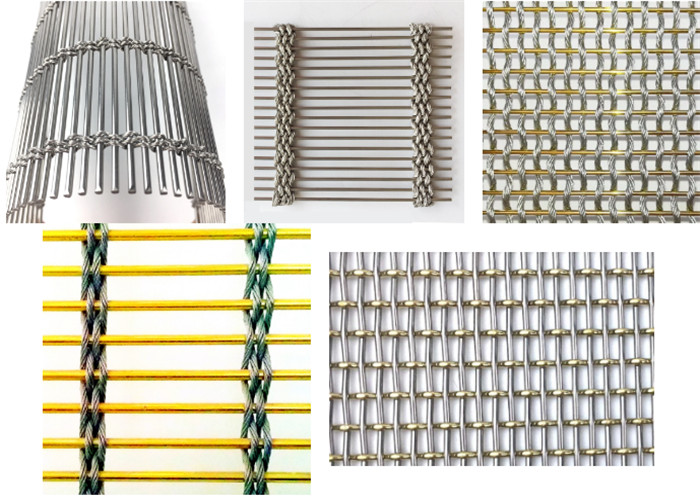

Architectural Decorative Cable Mesh product details show to you:
