2.1m Galvanized High Security W Section Palisade Fencing

Name: 21m Galvanized High Security W Section Palisade Fencing
Brand: HANGSHUN
Price: 12.66 USD

China 2.1m Galvanized High Security W Section Palisade Fencing wholesale

Brand Name : HANGSHUN

Model Number : 2m 2.4m 2.8m 3m 3.5m 4.5m etc

Certification : ISO9001

Place of Origin : China

MOQ : 204Sets

Price : USD12.66~USD15.45

Payment Terms : T/T, L/C

Supply Ability : 5600Sets/month

Delivery Time : 7Days after receive the deposit

Packaging Details : In pallet,in wooden box etc

Name : 2.1m galvanized high security palisade fencing

Metal Type : Iron

Pale type : W & D

Head type : One pointed,round,square,etc

Corrosion : Well corrosion resistant

Surface treatment : Powder Coated

Colors : Black,green,red,yellow,white,etc

height : 2.1m or as your need size

Length : 2.5m / 2.8m / 3m / 3.2m / 3.5m etc

Service : 3D modeling, 3D sample models

Contact Now

2.1m galvanized high security palisade fencing

High security palisade fencing description:

High security palisade fencing widely accepted as the industry leader to protect and deter general attack

from all types and conditions of intrusion.The pales are made of hot formed and cold rolled steel belts.

These belts offer both strength and rigidity combined with a long life span. Palisade normally produce

three types of pales, "W" profile, "D" profile and angle iron.

High security palisade fencing specification list:

Fence panel height :	1m-6m
Fence panel width :	1m-3m
Pale height :	0.5m-6m
Pale width :	W pale 65-75mm ,D pale 65-70mm
Pale thickness :	1.5mm-3.0mm
Angle rail :	40mmx40mm ,50mmx50mm ,63mmx63mm
Angle rail thickness :	3mm-6mm
RSJ post :	100mmx55mm ,100mmx68mm ,150mmx75mm
Square post :	50mmx50mm ,60mmx60mm 75mmx75mm ,80mmx80mm
Square post thickness :	1.5mm-4mm
Straight fish-plates or post clamps :	30mmx150mmx7mm ,40mmx180mmx7mm
Bolts and nuts :	M8 x No.34 for pale fixing M12 x No.4 for rail fixing

High security palisade fencing different style:

01 02 03 04 05 06 07

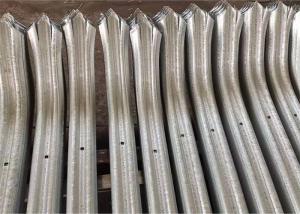

High security palisade fencing two kinds of section:

High security palisade fencing install well the effect:

Finish install picture

High security palisade fencing application:

1.Garden Fence

2. Highway Fence

3. Sport Fence

4. Farm Fence

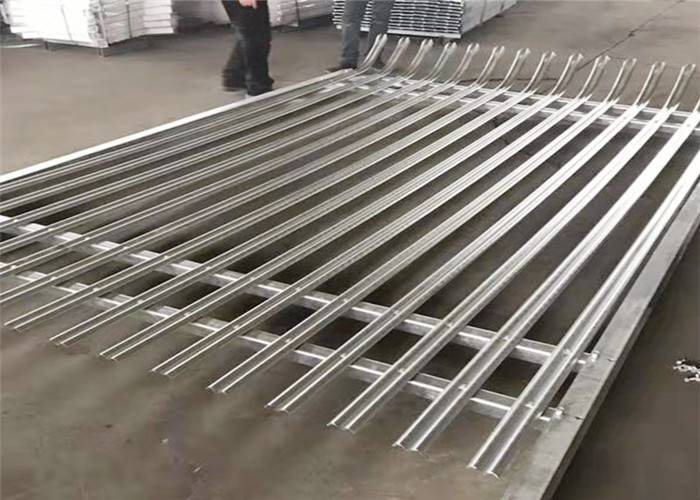

High security palisade fencing product pictures:

2.1m Galvanized High Security W Section Palisade Fencing
