60 Mesh 304 316 Stainless Steel Woven Wire Mesh Roll Ultra Fine

Brand Name : H&F

Model Number : SSWM-001

Certification : ISO-9001

Place of Origin : Hebei, China

MOQ : 50 Square Meters

Price : USD3.55~USD6.88

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 sqm per week

Delivery Time : According to order quantity

Packaging Details : Inside plastic film and outside wooden box

Product Name : 60 Mesh Stainless Steel Woven Wire Mesh Rolls

Material : SS304 316

Wire Diameter : 0.02-3.0mm

Mesh Count : 1-600 mesh

Roll Width : 0.5-4m

Length : 30m

Woven Type : Plain weave, twill weave. dutch weave

Usage : Filtration, sieve

Feature : acid-resisting

Contact Now

60 Mesh Ultra Fine 304 316 Stainless Steel Woven Wire Mesh Rolls

Product Description

The stainless steel wire mesh is made by weaving alternately the stainless steel warp wires and weft wires

to form a square opening or rectangular opening . Due to its own characteristics, the stainless steel mesh is

wear resistance, long service life,accurate mesh, uniform structure, no curl, easy to use, uniform screen thickness,

anti static, anti-acid and alkali resistance Corrosion.

Product Specifications

Stainless Steel Woven Wire Mesh (Plain Weave)
mesh/inch	wire diameter(mm)	aperture(mm)	-	mesh/inch	wire diameter(mm)	aperture(mm)
2mesh	1.80	10.90		60mesh	0.15	0.273
3mesh	1.60	6.866		70mesh	0.14	0.223
4mesh	1.20	5.15		80mesh	0.12	0.198
5mesh	0.91	4.17		90mesh	0.11	0.172
6mesh	0.80	3.433		100mesh	0.10	0.154
8mesh	0.60	2.575		120mesh	0.08	0.132
10mesh	0.55	1.990		140mesh	0.07	0.111
12mesh	0.50	1.616		150mesh	0.065	0.104
14mesh	0.45	1.362		160mesh	0.065	0.094
16mesh	0.40	1.188		180mesh	0.053	0.088
18mesh	0.35	1.060		200mesh	0.053	0.074
20mesh	0.30	0.970		250mesh	0.04	0.061
26mesh	0.28	0.696		300mesh	0.035	0.049
30mesh	0.25	0.596		325mesh	0.03	0.048
40mesh	0.21	0.425		350mesh	0.03	0.042
50mesh	0.19	0.318		400mesh	0.25	0.0385

Product Features

1) With excellent performance on acid-resisting , alkali-resisting and corrosion resisting.

2) With high intensity , abrasion resistant , ductility. High quality and Long service life.

3) High temperature oxidation resistance. Can filter in high temperature environment.

4) Cold processing, Diversify the usage of Metal Wire mesh.

5) High surface roughness,Do not needsurface treatment , Easily for maintenance.

Product Applications

1) Filtration:To filter the chemical solution and gas. Acid-resisting, alkali-resisting, corrosion preventive,

thermostability .Filtering application industry: Used for industries of Oil,Chemical, Pharmaceuticals, Food,

Agriculture, Printing, etc.

2) Sieve: Tensile strength, Wear resisting. Mainly used in sieveing granule and powder. Sieving application

industry: Metallurgy, Coal, Rubber, Pharmaceutical, Agriculture, Experiment, Ceramics, Glass

3) Other application of industry.Machine building, Tyre Manufacturer.

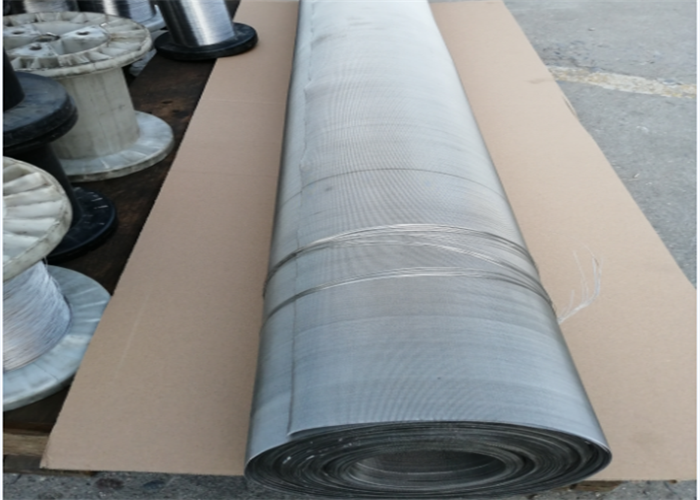

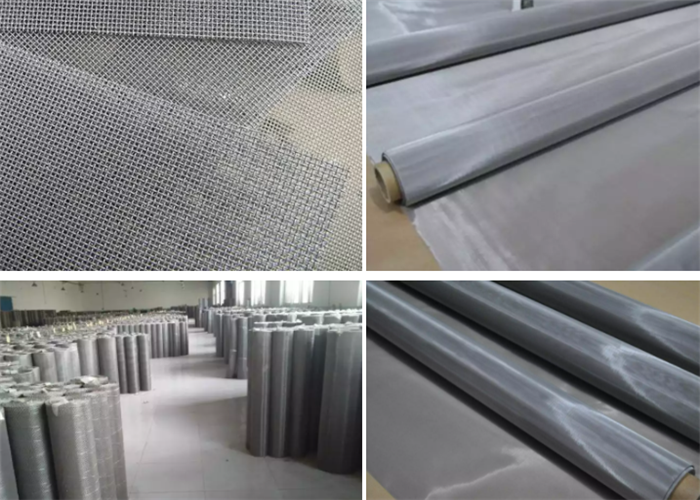

Product Show

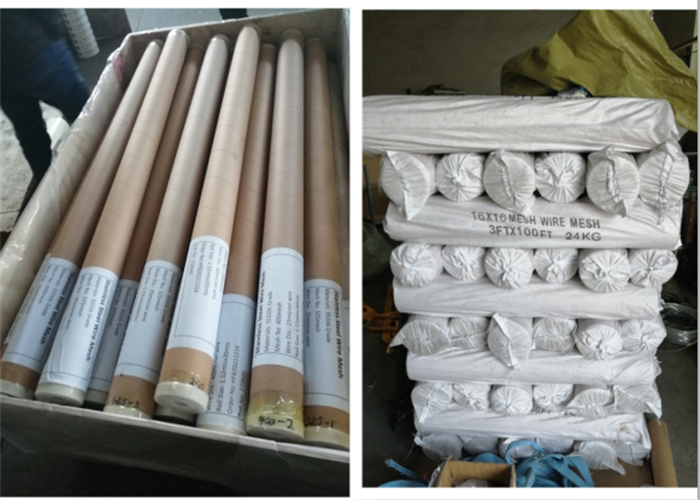

Packaging

Our Company
