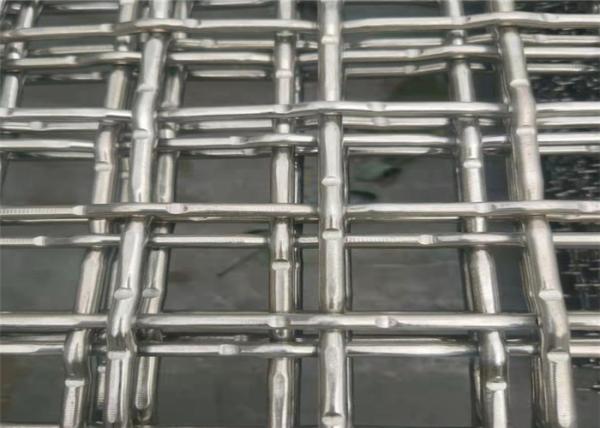

SS304 Plain Woven 45mm big hole Crimped Wire Mesh
Big hole crimped wire mesh description:
Big hole crimped wire mesh is one kind of our crimped wire mesh series product.Nomral it is made of good
quality 304 stainless steel wire also have other material wire.It can make in big hole type,like 45mm 55mm
and so on.The width and size can special design as your use project.
Big hole crimped wire mesh specification list:
| Product Name | Big hole crimped wire mesh |
| Material | 304 stainless steel wire |
| Color | silver or other color |
| Aperture | 45mm or custom |
| Grade | AISI 304 |
| Wire Dia. | 1.5mm-12mm |
| Width range | max 3.00m |
| Length range | 1m-30m |
| Use life | more than 1year |
| Number | Dia.(mm) | Aperture(mm) | Weight(kg) |
| 1 | 2 | 10 | 4.2 |
| 2 | 2.5 | 15 | 4.5 |
| 3 | 3 | 25 | 4.08 |
| 4 | 3.5 | 30 | 4.64 |
| 5 | 4 | 40 | 4.61 |
| 6 | 4.5 | 50 | 4.71 |
| 7 | 5 | 65 | 4.53 |
| 8 | 5.5 | 75 | 4.77 |
| 9 | 6 | 80 | 5.31 |
| 10 | 7 | 100 | 5.81 |
Big hole crimped wire mesh normal weaving method:
- flat top crimped
- double crimped
- intermediate crimped
- lock crimped
Big hole crimped wire mesh advantages；
1. Good material
2. Structural stability and firmness
3. High precision wire diameter open fairly evenly, with low error rate
4. Very low elongation under the high tension, drawing wire mesh is small
5. High yield point by deformation under high tension loss of elasticity
6. Highly wear resistant steel excellent wear resistance than fiber
7. No static electricity,prevent electrostatic, ensure the printing effect
8. Good resistance to hot melt is suitable for hot melt ink, steel net is of special advantages
9. Acid alkali resistant
Big hole crimped wire mesh packing way:
1. water proof paper inside and outside with weaving bag
2. air bubble film,then in pallet
3. in wooden box
4. as your way
Big hole crimped wire mesh application:
- mining,food
- chemical industry
- medicine,petroleum
- metallurgy,machinery
- protection, construction,handicraft
- also used in packaging nets, barbecue nets,
- barbecue oven nets, galvanized rolling nets,
- sintering furnace nets, metal products nets,
- handicraft nets, vibrating screen nets,
- basket nets, food machinery nets,
- cooking utensils nets, wall nets, grain,
- highway, iron. Network for road and infrastructure

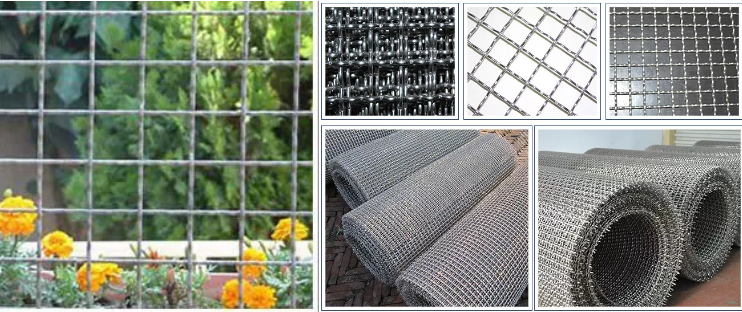

Show Big hole crimped wire mesh pictures:
