Length 3m Round Hole Perforated Stainless Steel 304 metal Plate
Perforated Stainless Steel 304 metal Plate description:
Perforated Metal Ceiling mesh sheet is manufactured by using punches or presses to create a series
of holes, slots, bars, or decorative patterns in sheet metal. In earlier times, these sheets would have to
be designed by skilled laborers using manual hand tools, but thanks to advancements in modern
technology, perforated sheet metal can be produced using a variety of machining methods.
Perforated Stainless Steel 304 metal Plate specification list:
| Product Name | Perforated Stainless Steel 304 metal Plate |
| Width | 0.5m 0.8m 1m 1.5m 1.8m 2m 2.2m 2.5m etc |
| Length | 1m 2m 2.5m 3m 4m 5m etc |
| Thickness | 1mm 1.5mm 1.8mm 2mm 2.5mm 3mm etc |
| Standard | AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc. |
| Technique | Hot rolled / cold rolled |
| Surface Treatment | Spraying or paiting |
| Thickness tolerance | ±0.01mm |
| Material | stainless steel 302 sheet or as your need sheet |
| Hole Size | 2mm 3mm 4mm 6mm 10mm 18mm 25mm 30mm 38mm 40mm etc |
| MOQ | 100sheets,We can accept sample order. |
| Shipment time | Within 15-20 workdays after receiving deposit or L/C |
| Export country | USA,UK,France,Germany,Poland,UAE,South africa,Singapore,Japanese etc |
| Capacity | 5-8Tons/Day |
Perforated Stainless Steel 304 metal Plate details list:
| Material | Thickness (mm) | Hole DIA. (mm) | Pitch (mm) | Width (m) | Length (m) | Punching rate (%) | Weight (kg/sqm) |
| | 0.2 | 6 | 2 | 1 | 20 | 44 | 0.88 |
| 0.35 | 5 | 4 | 1 | 20 | 24 | 2 |
| 0.45 | 6 | 3 | 1 | 20 | 35 | 2.5 |
| 0.8 | 3 | 3 | 1 | 20 | 19.6 | 3 |
| | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.1 |
| 0.55 | 1.1 | 2.2 | 1 | 2 | 22.7 | 3.4 |
| 0.55 | 1.5 | 2.8 | 1 | 2 | 26 | 3.3 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 |
| 0.8 | 2 | 3.4 | 1 | 2 | 30.8 | 4.5 |
| 1.5 | 2 | 2 | 1 | 2 | 19.6 | 9.4 |
| 1.5 | 5 | 8 | 1 | 2 | 35.4 | 7.8 |
| 3 | 5 | 16 | 1 | 2 | 19.6 | 18.8 |
| | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 3.14 |
| 0.8 | 1.5 | 1.5 | 1 | 2 | 19.6 | 5 |
| 1 | 2 | 2 | 1 | 2 | 19.6 | 6.28 |
| 2 | 5 | 16 | 1 | 2 | 19.6 | 6.28 |
| | 0.5 | 1 | 1 | 1 | 2 | 19.6 | 1.08 |
| 0.8 | 3 | 3 | 1 | 2 | 19.6 | 1.72 |
| 1.6 | 2 | 2 | 1 | 2 | 19.6 | 3.24 |
| 3 | 4 | 16 | 1 | 2 | 19.6 | 4.23 |
Perforated Stainless Steel 304 metal Plate advantages:
1. Perforated patterns are available in one-hole size or a variety of different hole sizes and shapes
2. Different Perforated Metal types are also available in flush, embossed (raised)
3. Bespoke patterns and pitches are designed to individual customer’s requests
4. Standard staggered pitch include; 60, 90 and 45-degree orientation
Perforated Stainless Steel 304 metal Plate features:
* Ten (10) unique perforation patterns available
* Variety of gauges and materials
* High strength-to-weight ratio
* Economical
* Versatile
* Functional and aesthetic appeal
* Ventilation for air, light, sound, gases
* Screening of fluids
* Pressure equalization or control
* Safety and security
Perforated Stainless Steel 304 metal Plate Packing way:
1. plate in roll: wrapped with plastic film or plastic bag,then load in strong pallet.
2. plate in flat:packing in waterproof paper or plastic film.then load in strong pallet or wood box.
3. as your need way load.

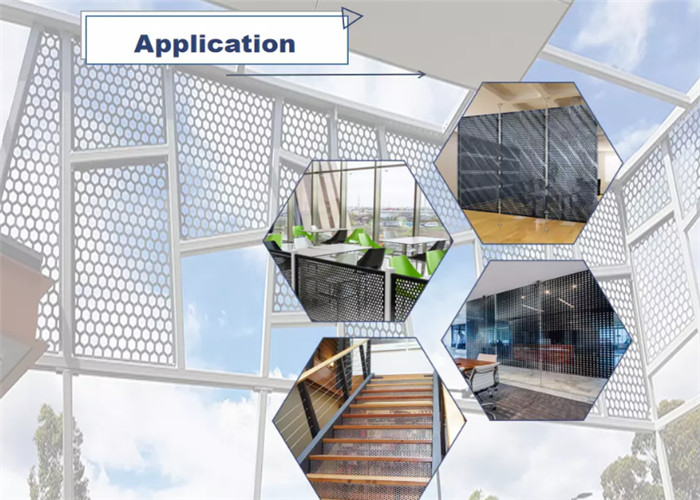

Application:
Our service for you:
- 24Hours professional service for you
- Products of fine quality, favorable price and satisfactory post-sale service.
- Convenience to buy container loads of mixed products.
- Speedy delivery and standardized transportation service.
Show our Perforated Stainless Steel 304 metal Plate pictures to you:
