SS304 Knotted Type Stainless Steel Wire Rope Mesh Safety Protection

Name: SS304 Knotted Type Stainless Steel Wire Rope Mesh Safety Protection
Brand: HANGSHUN
Price: 1 USD

China SS304 Knotted Type Stainless Steel Wire Rope Mesh Safety Protection wholesale

Brand Name : HANGSHUN

Model Number : HF-241208

Certification : ISO9001,CE

Place of Origin : CHINA

MOQ : 80M2

Price : negotiate

Payment Terms : T/T, Western Union

Supply Ability : 800M2 Per day

Delivery Time : 10-12days

Packaging Details : Wrapped with protect film,In carton,In pallet,In wooden case

Product name : Stainless Steel Wire Rope Mesh

Key word : Stainless Steel wire rope net

Type : wire rope mesh type

Material : SS304,SS316,SS316L Etc

Hole size : 20mm-50mm or custom

Rope diameter : 1.0mm-4.0mm or custom

Structure : 7*7 ,7*19,1*19

Kind : Knotted kind

Hole shape : Diamond shape

Height : 1m,1.5m,1.8m,2.0m,2.5m,3m,3.5m,4m,5m,6m etc

Length : 50m,100m,150m,200m etc

Sample : Free Sample

Use time : 30Years or linger

Advantages : Ant-UV,Anti-rust,Anti-resistant,strong tensile,long time use

Contact Now

SS304 Knotted Type Stainless Steel Wire Rope Mesh For safety protection

Stainless Steel Wire Rope Mesh Description:

Stainless Steel Wire Rope Mesh is is hand-made with new stainless steel wire rope.
The main material for processing use stainless steel rope have AISI304, AISI304L, AISI316, AISI316L etc.

The hole shape make in diamond shape.The hole size accord to required make in small hole ir big hole.

Stainless Steel Wire Rope Mesh with unform hole size,high tensile and anti-rust & anti-corrosion.Make sure

can long time use.And widely use for safety protection.

Stainless Steel Wire Rope Mesh details list:

Product Name	Stainless Steel wire rope Mesh
Type	Rope mesh type
Kind	Knotted kind
Material	SS304,SS316,SS316L etc
Rope diameter	1.0mm-4mm or custom
Hole size	20mm-50mm or custom
Hole shape	Diamond shape
Advantages	Ant-UV,Anti-rust,Anti-resistant,strong tensile,long time use
Height	1m,1.5m,1.8m,2.0m,2.5m,3m,3.5m,4m,5m,6m etc
Structure	77 ,719,1*19
Length	50m,100m,150m,200m etc
Sample	Free Sample
Use time	30Years

Stainless Steel Wire Rope Mesh normal use cable kind and structure:

SS304 Knotted Type Stainless Steel Wire Rope Mesh Safety Protection

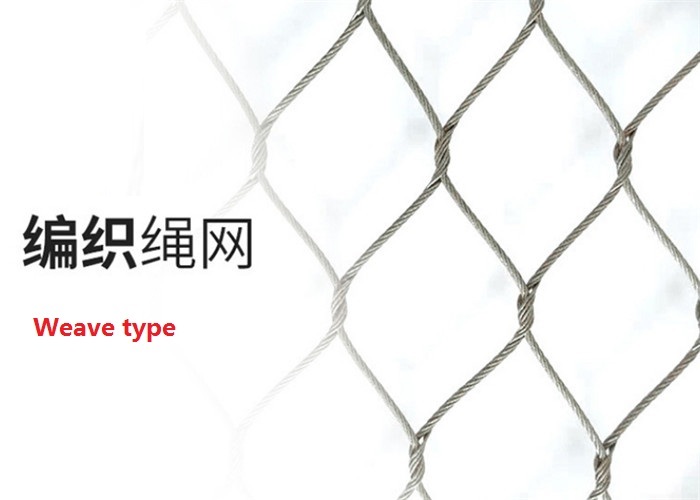

Stainless Steel Wire Rope Mesh have different kinds:

SS304 Knotted Type Stainless Steel Wire Rope Mesh Safety Protection

Stainless Steel Wire Rope Mesh Normal specification list:

Rope Construction	Rope Diameter		Aperture	Breaking Force
Rope Construction	inch	mm	mm	kn
7X19	1/8	3.2	100X173	7.38
7X19	1/8	3.2	90X156	7.38
7X7	3/32	2.4	100X173	4.18
7X7	3/32	2.4	90X156	4.18
7X7	3/32	2.4	80X139	4.18
7X7	3/32	2.4	70X121	4.18
7X7	5/64	2.0	100X173	3.17
7X7	5/64	2.0	90X156	3.17
7X7	5/64	2.0	80X139	3.17
7X7	5/64	2.0	70X121	3.17
7X7	1/16	1.6	80X139	2.17
7X7	1/16	1.6	70X121	2.17
7X7	1/16	1.6	60X104	2.17
7X7	1/16	1.6	51X87	2.17
7X7	3/64	1.2	80X139	1.22
7X7	3/64	1.2	60X104	1.22
7X7	3/64	1.2	50X87	1.22
7X7	3/64	1.2	40X69

Stainless Steel Wire Rope Mesh Good Features:

high quality material
hole unfirom
different hole size
tightly woven
legnth size and height size are enough
surface bright
high tensile
anti-UV
anti-rust
anti-climb
anti-resistant
easy install
long time use

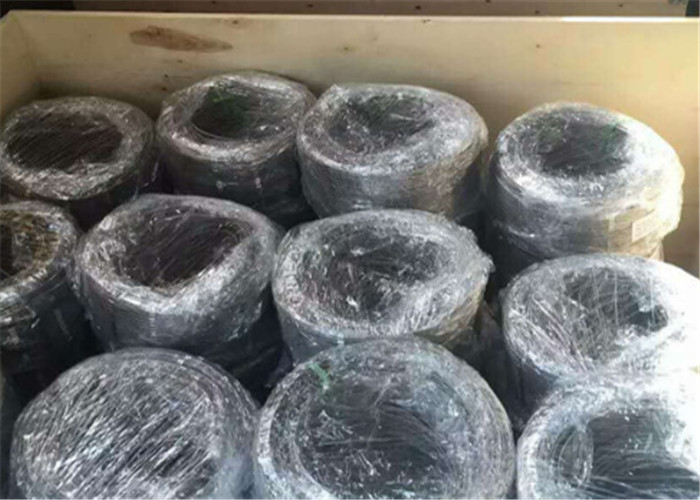

Stainless Steel Wire Rope Mesh packing way:

1.wrapped with protect film

2.load wooden box or In pallet
3.accord to customers' way

Stainless Steel Wire Rope Mesh widely application:

1.safety protection

2.drop safety
3. safety on bridge,suspension bridge
4. stair railing,railing balustrade

5. amusement park mesh for playground,school
6. building decoration
7. animal enclosure
8. protect use fence
9. zoo

10.garden

Show our Stainless Steel Wire Rope Mesh pictures for reference:

SS304 Knotted Type Stainless Steel Wire Rope Mesh Safety Protection

Our company:

Flexibility,high strength,rust resistance,recyclable,maintenance free.
