Hot Dipped Galvanized Pipeline Coating 8Lines Wire Welded Metal Mesh For Offshore Gas Pipeline

Product Categories

Stainless Steel Woven Wire Mesh [140]
Expanded Metal Wire Mesh [139]
Windbreak Fence Panels [140]
Pipeline Reinforced Mesh [94]
Wire Rope Mesh [141]
Wire Mesh Fence [126]
Helideck Safety Net [41]
Chain Link Fence [77]
Perforated Metal Mesh [70]
Decorative Wire Mesh [88]
Crimped Wire Mesh [63]
Steel Bar Grating [28]
Razor Barbed wire [44]
Bale Ties Wire [19]
Gabion Box [58]
Square Wire Mesh [23]
Metal Wire Nails [105]
Copper Wire Mesh [10]

Honesty & Faith Hardware Products Co.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Hot Dipped Galvanized Pipeline Coating 8Lines Wire Welded Metal Mesh For Offshore Gas Pipeline

Brand Name : H&F

Model Number : HF-250528

Certification : ISO-9001

Place of Origin : Hebei, China

MOQ : 15000 Square Meters

Price : USD4.80/M2~USD4.93/M2

Payment Terms : T/T, Western Union

Supply Ability : 83000 Square Meters per month

Delivery Time : According to order quantity

Packaging Details : 6rolls per bundle or as customers' requirements

Product Name : Hot dipped galvanized Pipeline Coating 8Lines wire welded metal mesh

Key word : CWC Mesh

Material : Hot dipped Galvanized wire

Wire diameter : 1.8mm-2.7mm

Hardness range : 485N/mm2~650N/mm2

Line wire quantity : 6Lines,8lines,10lines

Both sides line wire pitch : 25.4 mm or 50.8 mm

Zinc coated : 70gm²~300g / m² or custom

Hole Size : 25.4mm x 67mm

Roll Diameter : 700mm~1100mm

Surface treatment : hot dipped galvanized

Middle line wire pitch : 25.4 mm

Width : 190.5mm

Length : 140m,145m,280m etc

Exposed Wire Edge : ≤ 2.5 mm

Cross wire pitch : 67 mm or 92.4 mm

Use life : Above 30years

Sample : Supply free sample to test

Contact Now

Hot dipped galvanized Pipeline Coating 8Lines wire welded metal mesh For Offshore Gas Pipeline

Pipeline Coating 8Line wire welded metal mesh Description:

Pipeline Coating 8Line wire welded metal mesh is made in 8lines wire.Also can custom.

The material wire use electric galvanized wire hot dipped galvanized wire.Our machine welded in

the standard hole size:25.4mm*67mm and standard width size:190.5mm.

The length custom clients' need different length.

It has good advantages:standard wire diameter,uniform hole,the lowest tolerance,strong tensile

strength,good anti-rust and anti-corrosion,enough length.So suitable for Offshore Gas Pipeline

projects use.

Pipeline Coating 8Line wire welded metal mesh specification list:

Product Name	Pipeline Coating 8Line wire welded metal mesh
Material	Hot dipped galvanized wire
Wire diameter	1.8mm-2.7mm
Hole size	25.4mm x 67mm
Surface treatment	hot dipped galvanized
Zinc coated	70gm²~300g / m² or custom
Middle line wire pitch	25.4 mm
Cross wire pitch	67 mm or 92.4 mm
Both sides line wire pitch	25.4 mm or 50.8 mm
Line wire quantity	6lines, 8lines or 10lines
Exposed Wire Edge	≤ 2.5 mm
Hardness range	485N/mm2~650N/mm2
Roll Diameter	700mm-1150mm
Width dimensions	190.5mm
Length dimensions	140m,145m,280m etc
Sample	Supply free sample to test

Pipeline Coating 8Line wire welded metal mesh Implementation standards:

GB / T701, ASTM A641, GB / T1499.3, GB / T228,
GB / T238, ASTM A370, ASTM A810,
ASTM A185, ASTM A82, ASTM A1064.

Pipeline Coating 8Line wire welded metal mesh export 4 types for choice:

Hot Dipped Galvanized Pipeline Coating 8Lines Wire Welded Metal Mesh For Offshore Gas Pipeline

Pipeline Coating 8Line wire welded metal mesh Good Features:

Good material wire
Standard Wire diameter
Hole size uniform
Hole size all are in same
Strong welded point
The lowest tolerance
Enough Length
Bright surface
Tensile strength strong
Corrosionproof
Rustproof
Uselife long
Fast install
Delivery time in time
Strong packing way

Pipeline Coating 8Line wire welded metal mesh details:

Hot Dipped Galvanized Pipeline Coating 8Lines Wire Welded Metal Mesh For Offshore Gas Pipeline

Pipeline Coating 8Line wire welded metal mesh Packing way:

Packing 2rolls,5rolls,6rolls in one bundle
load in pallet or in woden case
Load in bulk
As clients' need way

Pipeline Coating 8Line wire welded metal mesh use areas:

Offshore Gas pipeline
River Bottom Gas & Oil Pipeline
Chemical Processing Pipeline
Subsea Gas & Oil Pipeline
Water and Wastewater Pipeline
Everglades Gas Pipeline

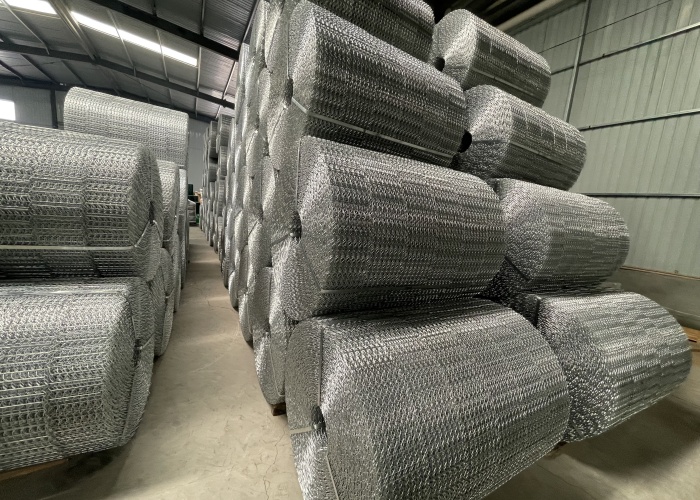

Show our Pipeline Coating 8Line wire welded metal mesh product pictures:

Hot Dipped Galvanized Pipeline Coating 8Lines Wire Welded Metal Mesh For Offshore Gas Pipeline
