2.5mm thickness Window Construction Frame Expanded Metal mesh panels

Name: 25mm thickness Window Construction Frame Expanded Metal mesh panels
Brand: HANGSHUN
Price: 3.21 USD

China 2.5mm thickness Window Construction Frame Expanded Metal mesh panels wholesale

Brand Name : HANGSHUN

Model Number : 8mm-35mm

Certification : ISO9001

Place of Origin : CHINA

MOQ : 100-300units

Price : USD3.21~USD6.11

Payment Terms : T/T, Western Union, L/C

Supply Ability : 2800PCS/Week

Delivery Time : 8Days after receive the deposit

Packaging Details : In Bulk

Material kind : Mild Steel sheet,custom for you

Thickness range : 0.5mm 0.8mm 1.0mm 1.2mm 1.5mm 2.0mm

Hole Shape : Diamond,Hexagonal,Square

Hole size : 10mm 15mm 20mm 25mm 30mm etc

Surface Color : Red White Black

Packing way : In Bulk or as your need

Width : 0.5m 0.8m 1m 1.2m 1.5m

Length : 2m 3m 5m 8m 12m 15m etc

Surface : smooth and flat

Sample : free supply for your need type

Contact Now

2.5mm thickness Window Construction Frame Expanded Metal mesh panels

Frame expanded metal mesh panels description:

Frame expanded metal mesh panels is one kind of our expanded metal mesh series product.It is the square
pipe or angel iron though welded treatment on the expanded metal mesh.Normal 4sides all have the frame,
which can enough safety protect and strong fixed.When use the product will easy and directly install.This
product widely use in construction,walkway,machine parts etc.

Frame expanded metal mesh details:

1.Material: low carbon steel, stainless steel, aluminum plate, brass plate .
2.shape: diamond , square, round , trianglescale,etc, we can produce it according to
the customers' drawing to punching and pulling.
3.Pattern: Standard - raised surface, more rigid
4. Features: It has well erosion-resisting and rustproof properties.

Frame expanded metal mesh size for reference:

width range

400mm 450mm 500mm 550mm

600mm 650mm 700mm 750mm etc,

also can custom for you

length range

0.7m 0.8m 0.9m 1m

1.2m 1.4m 1.5m 1.8m

2m 2.2m 2.5m etc

also can custom for you

height range

35mm 40mm 45mm 50mm etc
also can custom for you

Tickness(mm)	SWD(mm)	LWD(mm)	Wire stems width(mm)	Width(m)	Length(m)	Weight(kg/m2)
0.5	2.5	4.5	0.5	0.5	1	1.8
0.5	10	25	0.5	0.6	2	0.73
0.6	10	25	1	0.6	2	1
0.8	10	25	1	0.6	2	1.25
1	10	25	1.1	0.6	2	1.77
1	15	40	1.5	2	4	1.85
1.2	10	25	1.1	2	4	2.21
1.2	15	40	1.5	2	4	2.3
1.5	15	40	1.5	1.8	4	2.77
1.5	23	60	2.6	2	3.6	2.77
2	18	50	2.1	2	4	3.69
2	22	60	2.6	2	4	3.69
3	40	80	3.8	2	4	5.00
4	50	100	4	2	2	11.15

Frame expanded metal mesh material for choice:

1. Galvanized steel plate
2. Low caron steel plate
3. Stainless Steel plate
4. As your need custom

Frame expanded metal mesh characteristic:

1. High Quality Material;
2. Anti-Rust&Anti-Corrosion;
3. Smooth&Clean Surface;
4. Uniform Hole Size;
5. High bearing capacity;
6. Easy Install and use;
7. Strong and Durable;
8. Strong packing way;
9. Long use life;
10. Fast delivery time and ship.

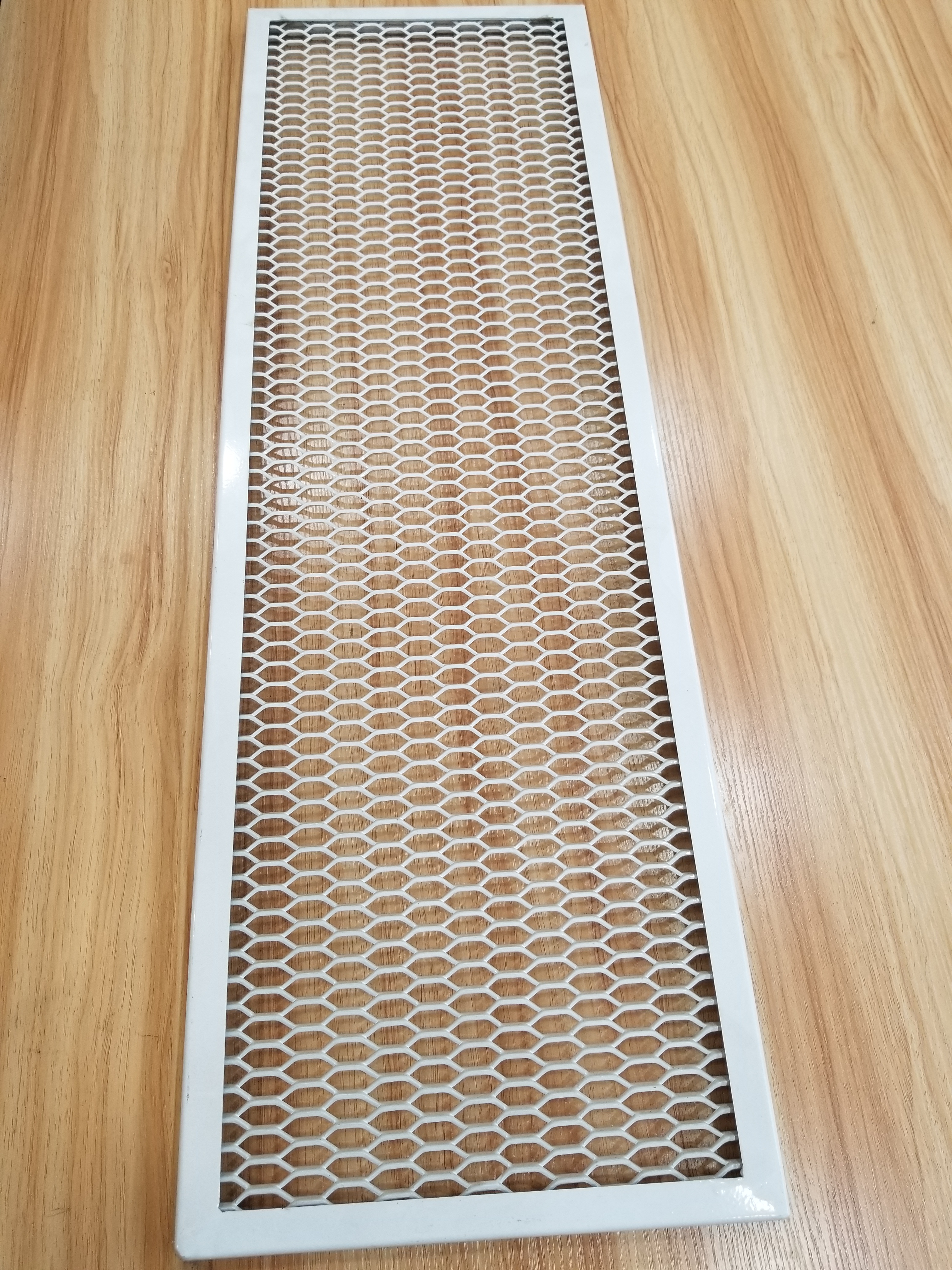

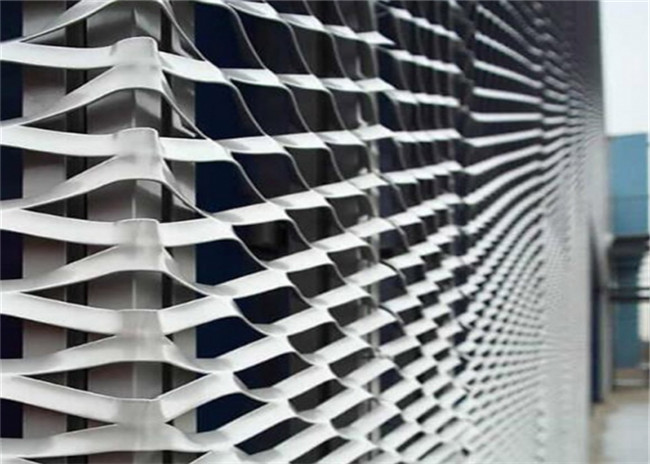

Show our Frame Expanded metal mesh panels Product pictures as follows:

2.5mm thickness Window Construction Frame Expanded Metal mesh panels

2.5mm thickness Window Construction Frame Expanded Metal mesh panels
